Description

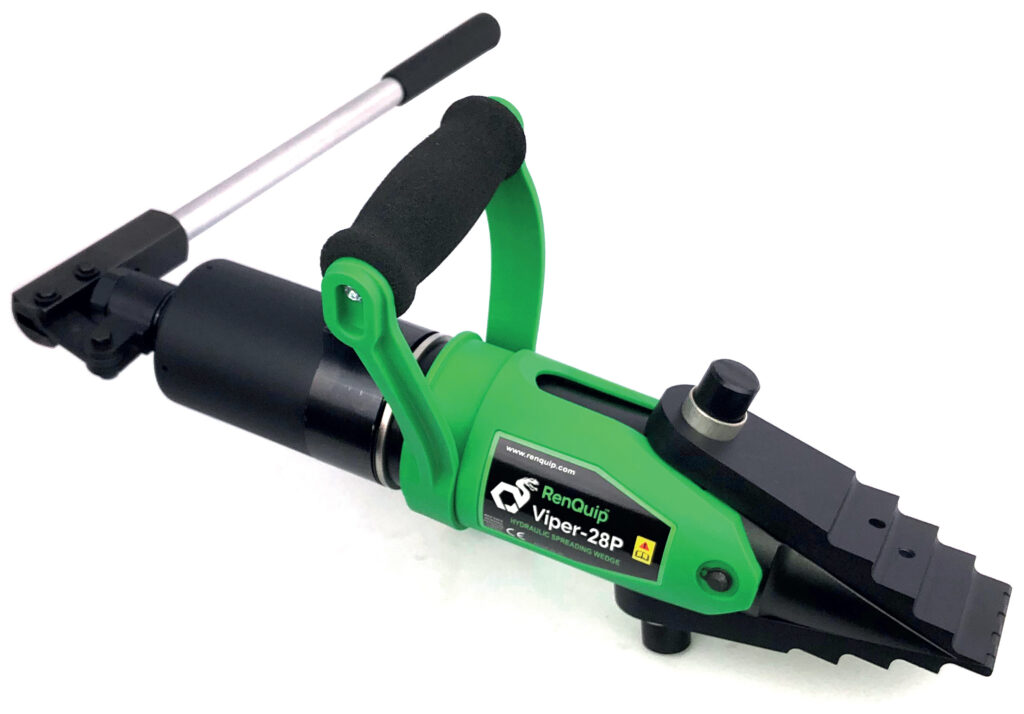

The Viper-28P is RenQuip’s latest revolutionary
Flange Spreading Wedge with integral pump
– capable of entering a 5mm access gap and
producing a spreading force of 277kN (27.7T)
per tool yet weighs only 7.5Kg (16.5lbs).
• Max Spreading force 277kN (27.7T)
(554kN (55.4T) when used in pairs)
• Lightweight 7.5Kg (16.5lbs)
• 5mm Access Gap
• Spreading distance 5mm to 124mm
(when used with stepped blocks)
Features
- Maximum Spreading Force: 27.7 tons per tool
- Maximum Spreading Force: 55.4 tons (when used in pairs)
- Weighs just 16.5 pounds for easy handling
- Access Gap: Narrow 0.20-inch gap for entry into tight spaces
- Spreading Range: 0.20 to 4.88 inches with stepped blocks
- Jaw Width: 2.1 inches
- Compact Dimensions: 3.0″ x 5.2″ x 17.1″
- Rotating, Reversible Handle: For ease of use in confined areas
- Quick Disassembly: Single pin disassembly
