Description

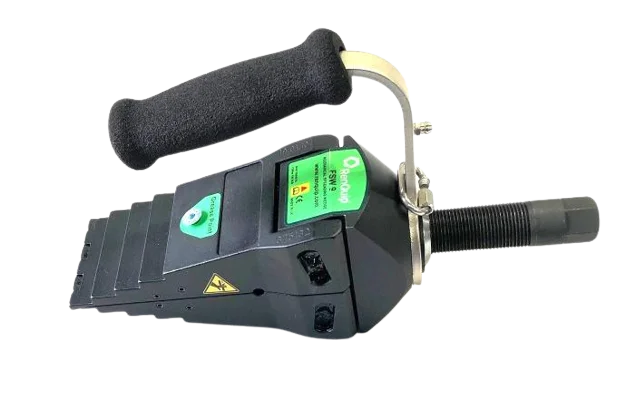

A Mechanical Flange Spreading Wedge actuated by applying torque.

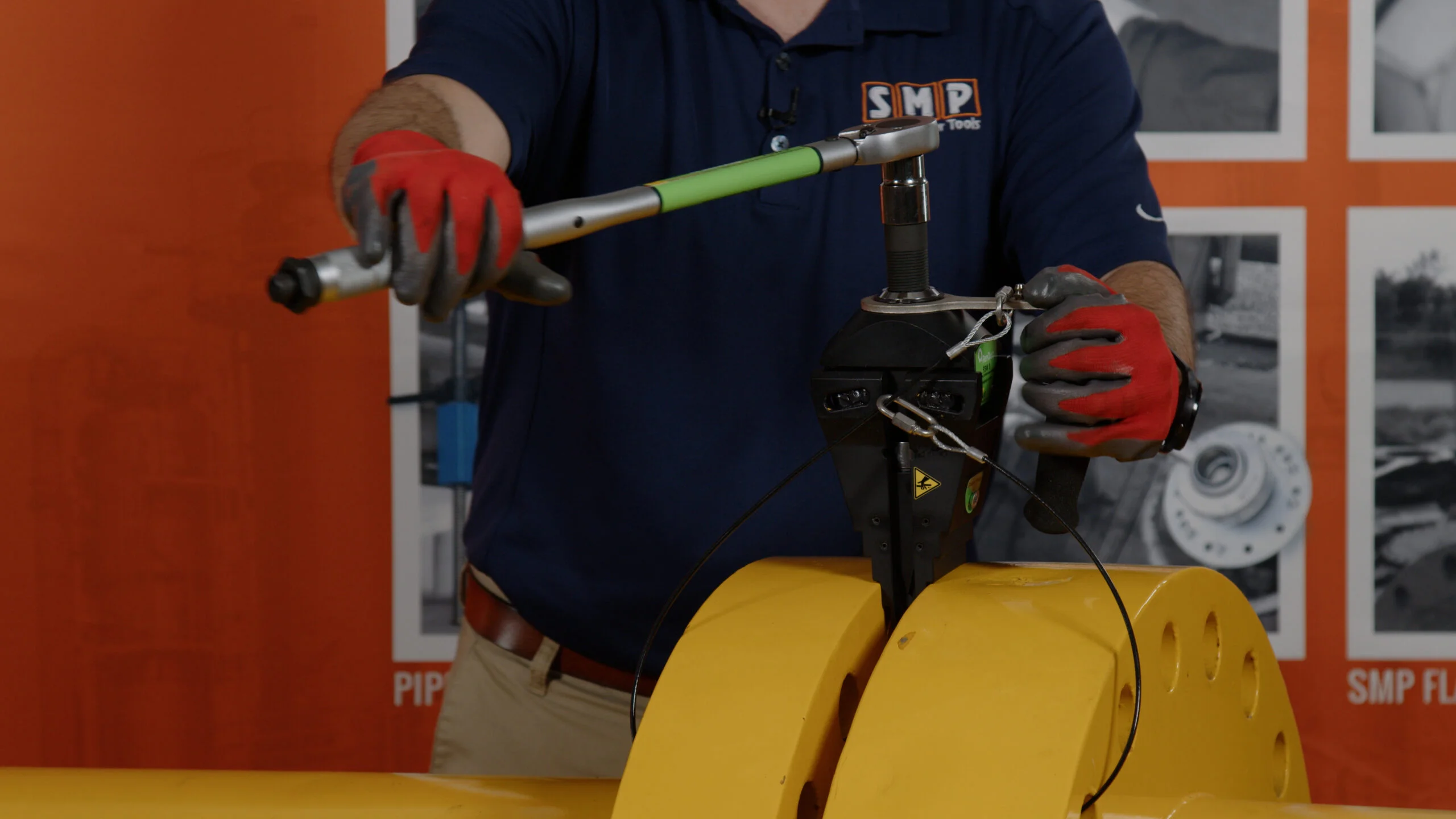

The FSW9 flange spreading wedge can enter a flange joint access gap as small as 6mm (0.24”) and produce a maximum spreading force of 188kN (18.8T) when used in pairs (as recommended) to push the mating faces of flanges apart.
The FSW9 can create a gap up to 81mm (3.19”) between flange faces with the stepped blocks fitted facilitating the replacement of gaskets, seal rings, or other flange face maintenance and testing.
Features
- 100% Load/Pressure Tested and Certified
- High Durability, High Quality, Low Maintenance
- Tool Weight: 5.5Kg (12.1lbs)
- Max Spreading Force: 94kN (9.4T)
- Spreading Distance: 6mm (0.24”) to 81mm (3.19”)
- Robust Moulded Case for easy transportation and storage
