Description
A Hydraulic Flange Spreading Wedge with a combined hydraulic cylinder and pump unit.
The FSW17P flange spreading wedge can enter a flange joint access gap as small as 6mm and produce a maximum force of 326kN when used in pairs (as recommended) to push the mating faces of flanges apart. The FSW17P can create a gap up to 81mm between flange faces with the stepped blocks fitted facilitating the replacement of gaskets, seal ring’s, or other flange face maintenance and testing.

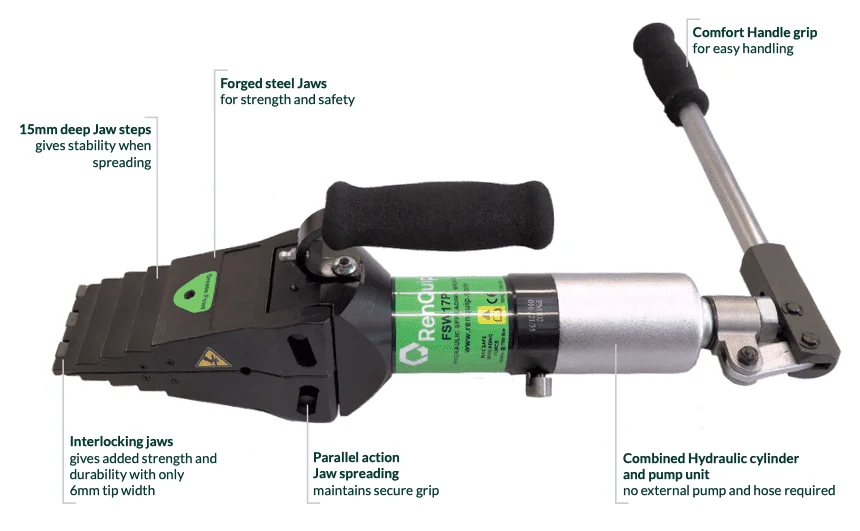

Features
- 100% Load/Pressure tested and certified
- High durability High Quality low Maintenance design
- Tool weight 8.5Kg
- Max Spreading force 163kN (326kN when used in pairs)
- Spreading distance 6mm to 81mm when used with stepped blocks
- Robust Moulded Case for easy transportation and storage
